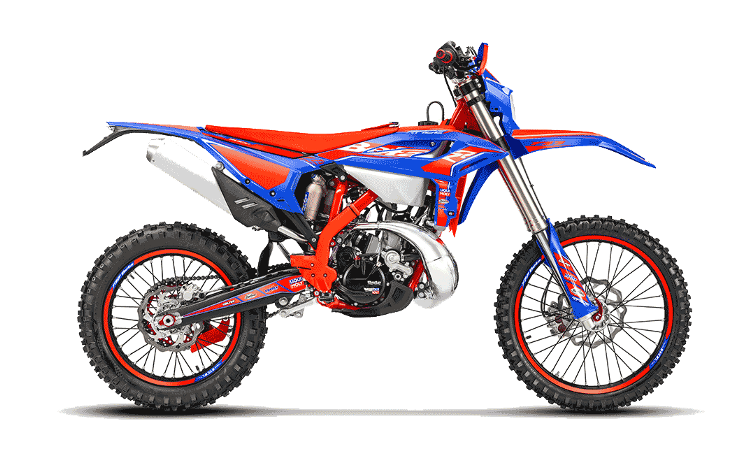

The RR Race 200 2T is the meeting point between agility and power. As light as a 125, but with the extra torque you need to tackle any track with confidence and consistency.
The RR Race 200 2T is the bike for those who seek the lightness and responsiveness of a 125, but prefer a more relaxed ride at lower revs, typical of larger displacement engines. The frame, components and racing equipment guarantee stability, protection and maximum control. A bike that, thanks also to the new reinforced gearbox, combines comfort and absolute reliability with the performance required in the most demanding races.
CHASSIS
FRAME
Molybdenum steel with double cradle split above
the exhaust port
WHEELBASE
1477 mm
MAX LENGHT
2167 mm
MAX WIDTH
830 mm
MAX HEIGHT
1275 mm
SEAT HEIGHT
950 mm
GROUND CLEARANCE
345 mm
FOOTREST HEIGHT
430 mm
DRY WEIGHT
97 kg (front 47 kg; rear 50 kg)
FUEL TANK CAPACITY
9,5 l
RESERVE
2,3 l
COOLING SYSTEM CAPACITY
1,3 l
FRONT SUSPENSION
Hydraulic usd fork with Ø 48 mm shaft
REAR SUSPENSION
Monoshock with progressive compound lever
SHOCK ABSORBER STROKE
130 mm
FRONT WHEEL TRAVEL
300 mm
REAR WHEEL TRAVEL
287 mm
FRONT BRAKE
Wave disc Ø260 mm and double-piston floating caliper
REAR BRAKE
Wave disc Ø240 mm and single-piston floating caliper
FRONT RIM
21 x 1,6 – 36 holes
REAR RIM
18 x 1,85 – 36 holes
FRONT TYRE
90/90 – 21
REAR TYRE
ENGINE
TYPE
Single cylinder, 2-stroke, liquid-cooled
BORE
62 mm
STROKE
54,5 mm
DISPLACEMENT
190,2 cc
COMPRESSION RATIO
14,4:1
EXHAUST VALVE
BPV System
STARTER
Kick starter
IGNITION
AC Kokusan – digital CDI
SPARK PLUG
NGK BR8ECM
INDUCTION SYSTEM
Induction reed
LUBRICATION
Mixing
CARBURETTOR
Keihin PWK 36
CLUTCH
Wet multi-disc with reverse opening
PRIMARY DRIVE
Z.23/73
TRANSMISSION
6 gears
FINAL TRANSMISSION
Chain
ENGINE OIL
SAE 10W/40
CONSUMPTION l/100km
2,5
POLLUTION Co2 [g/km]
59
