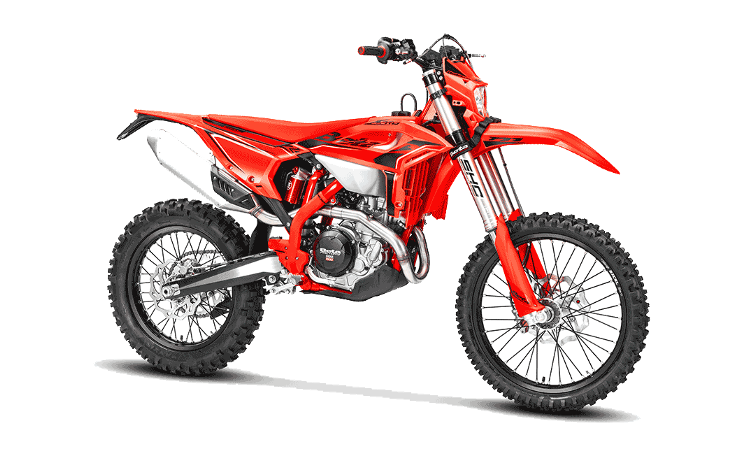

The biggest in the X-PRO 4T range. The 480 4T is designed for those who don’t want to settle for less: maximum torque and power, perfect for open spaces and for the most demanding and physically fit riders.
The 480 cc 4-stroke single-cylinder engine is the most powerful in the Beta range. Impressive torque and constant thrust at all revs make it ideal for fast sections, wide spaces and long distances. A bike that requires technique and experience, but rewards you with absolute performance, unleashing all its power without ever affecting stability or control.
CHASSIS
Frame
Molybdenum steel with double cradle split above
the exhaust port
Wheelbase
1480 mm
Max length
2180 mm
Max width
830 mm
Max height
1275 mm
Seat height
950 mm
Ground clearance
335 mm
Footrest height
427 mm
Dry weight
107,5 kg (front 52,7 kg; rear 54,8 kg)
Fuel tank capacity
9,0 l
Reserve
2,3 l
Cooling system capacity
1,3 l
Front suspension
Hydraulic usd closecartridge fork with ø 48 mm shaft
REAR SUSPENSION
Monoshock with progressive compound lever
Shock absorber stroke
130 mm
Front wheel travel
300 mm
Rear wheel travel
287 mm
Front brake
Wave disc ø260 mm and double-piston floating caliper
Rear brake
Wave disc ø240 mm and single-piston floating caliper
Front rim
21 x 1,6 – 36 holes
BACK rim
18 x 2,15 – 36 holes
Front TYRE
90/90 – 21
REAR TYRE
140/80 -18
engine
TYPE
Single cylinder, 4-stroke, liquid-cooled
bore
100 mm
stroke
60,8 mm
displacement
477,5 cc
Compression ratio
11,86:1
Valve train
DOHC finger follower / 4 valve, intake titanium,
exhaust steel
Starter
Electric starter
Acg
Kokusan
Spark plug
NNGK LKAR 8A-9
Lubrication
2 oil pumps
Fuel system
Elldor dual electronic injection
Throttle body
Ø 42 mm – Synerject
Clutch
Wet multi-disc clutch
Primary drive
Z.31/72
Transmission
6 gears
Final transmission
Chain
Engine oil
SAE 10W/50 0,8 l. + SAE 10W/40 0,8 l.
