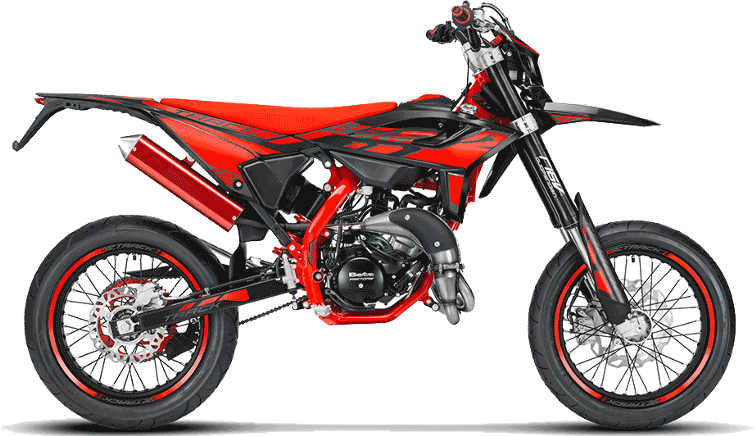

The RR 50 Motard Track is the most racing-oriented version of the 50cc family. Directly inspired by the world of competition, it combines the handling of an urban motard with a chassis developed for maximum precision.
STYLE AND CHARACTER
Every detail of the RR 50 Motard Track speaks of performance: from the high-contrast graphics to the sharp design of the superstructures. A bike made to stand out: at school, in the city or on the track.
Available colours: Blue / Black
Every detail of the RR 50 Motard Track speaks of performance: from the high-contrast graphics to the sharp design of the superstructures. A bike made to stand out: at school, in the city or on the track.
Available colours: Blue / Black
chassis
Frame
Steel double cradle frame
Wheelbase
1418 mm
Max length
2053 mm
Max width
810 mm
Max height
1170 mm
Seat height
894 mm
groud clearence
300 mm
Footrest height
360 mm
Dry weight
85 kg
Fuel tank capacity
6,5 l.
Reserve
1,5 l.
Cooling circuit capacity
0,6 l.
Front suspension
Hydraulic fork ø41 mm
Rear suspension
Mono shock absorber
Shock absorber stroke
50 mm
Front wheel travel
210 mm
rear wheel travel
200 mm
Front brake
Wave disc ø260 mm
Rear brake
Wave disc ø220 mm
Front rim
17 X 2,50
Rear rim
17 X 3,50
Front tyre
100/80 – 17
rear tyre
130/70 – 17
engine
type
Single-cylinder, 2-stroke, liquid-cooled
Bore
40,3 mm
Stroke
39 mm
displacement
49,7 cc
Compression ratio
12:1
starter
Kick
generator
AET 12V – 85W electronics
Spark plug
NGK BR9ES
intake system
Reed valve in the engine case
Lubrication
Mixing with a mechanical pump
Fuel system
Carburettor
Clutch
Wet multiple discs clutch
Primary transmission
Z.20/71
transmission
6 speed
Secondary transmission
Chain
Engine oil
SAE 20W/30
Consumption
l/100 km 2,41
Pollution
Co2 [g/km] 57
