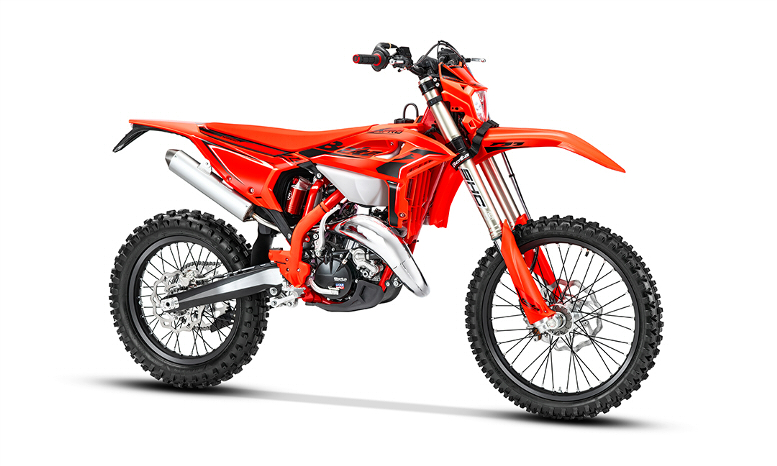

The RR X-PRO 125 2T is the lightest and most easy to handle of the X-PRO family. Ideal for young riders coming up from the lower categories, but also for more experienced riders looking for an agile and fun bike.
Engine and gearbox: More responsive, explosive and fun
The new RR X-PRO 125 2T features a completely redesigned piston and cylinder head, with a new combustion chamber that increases torque, power and responsiveness. The result is an even more brilliant and powerful engine, capable of delivering explosive performance in all conditions.
To support the more aggressive power delivery, the 2026 model year also introduces a totally new gearbox, with reinforced gears and optimised ratios: faster, more precise and more reliable gear changes, to get the most out of every gear.
CHASSIS
Frame
Molybdenum steel with double cradle split above the
exhaust port
Wheelbase
1477 mm
Max length
2167 mm
Max width
830 mm
Max height
1270 mm
Seat height
930 mm
Ground clearance
325 mm
Footrest height
410 mm
Dry weight
94 kg (front 45 kg; rear 49 kg)
Fuel tank capacity
9,5 l
Reserve
2,3 l
Cooling system capacity
1,3 l
Front suspension
Hydraulic USD fork with ø 48 mm shaft
Rear suspension
Monoshock with progressive compound lever
Shock absorber stroke
132 mm
Front wheel travel
295 mm
Rear wheel travel
290 mm

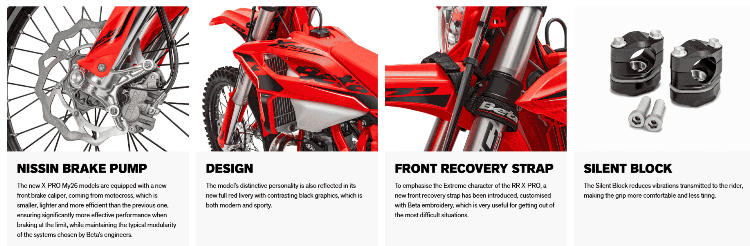

Front brake
Wave disc ø260 mm and double-piston floating caliper
Rear brake
Wave disc ø240 mm and single-piston floating caliper
Front rim
21 x 1,6 – 36 holes
Rear rim
18 x 1,85 – 36 holes
Front tyre
90/90 – 21
Rear tyre
120/80 -18
ENGINE
Type
Single cylinder, 2-stroke, liquid-cooled
Bore
54 mm
Stroke
54,5 mm
Displacement
124,8 cc
Compression ratio
15,2:1
Exhaust Valve
BPV system
Starter
Kick starter
Ignition
AC Kokusan – digital CDI
Spark plug
NGK BR9ECMVX
Induction system
Induction reed
Lubrication
Mixing
Carburettor
Keihin PWK 36
Clutch
Wet multi-disc with reverse opening
Primary drive
Z. 23/73
Transmission
6 Gears
Final transmission
Chain
Engine oil
SAE 10W/40
Consumption l/100km
2,2
POLLUTION c02 [G/KM]
58
